UV Inkjet Digital Label Press

LabStar 330

HANGLOBAL is a wholly-owned subsidiary of HanGlory Group, focusing on providing leading inkjet digital solutions in the field of roll-to-roll printing, such as labels, books, and publishing. By combining inkjet digital technology with intelligent manufacturing, we are concentrating on providing our best assistance and support to help customers in the fields of labels and publication to reshape their products’ business value and plan their development strategies in the digital market..

know more ➞ click here

Description
Specification

The new LabStar is a technology’s breakthrough in inkjet by HanGlobal. The new LabStar 330 is a digital UV inkjet system that combines high print quality (CMYK and White, expandable with Violet and Orange) with optimal economics. The fully equipped press is available as a very attractive investment.

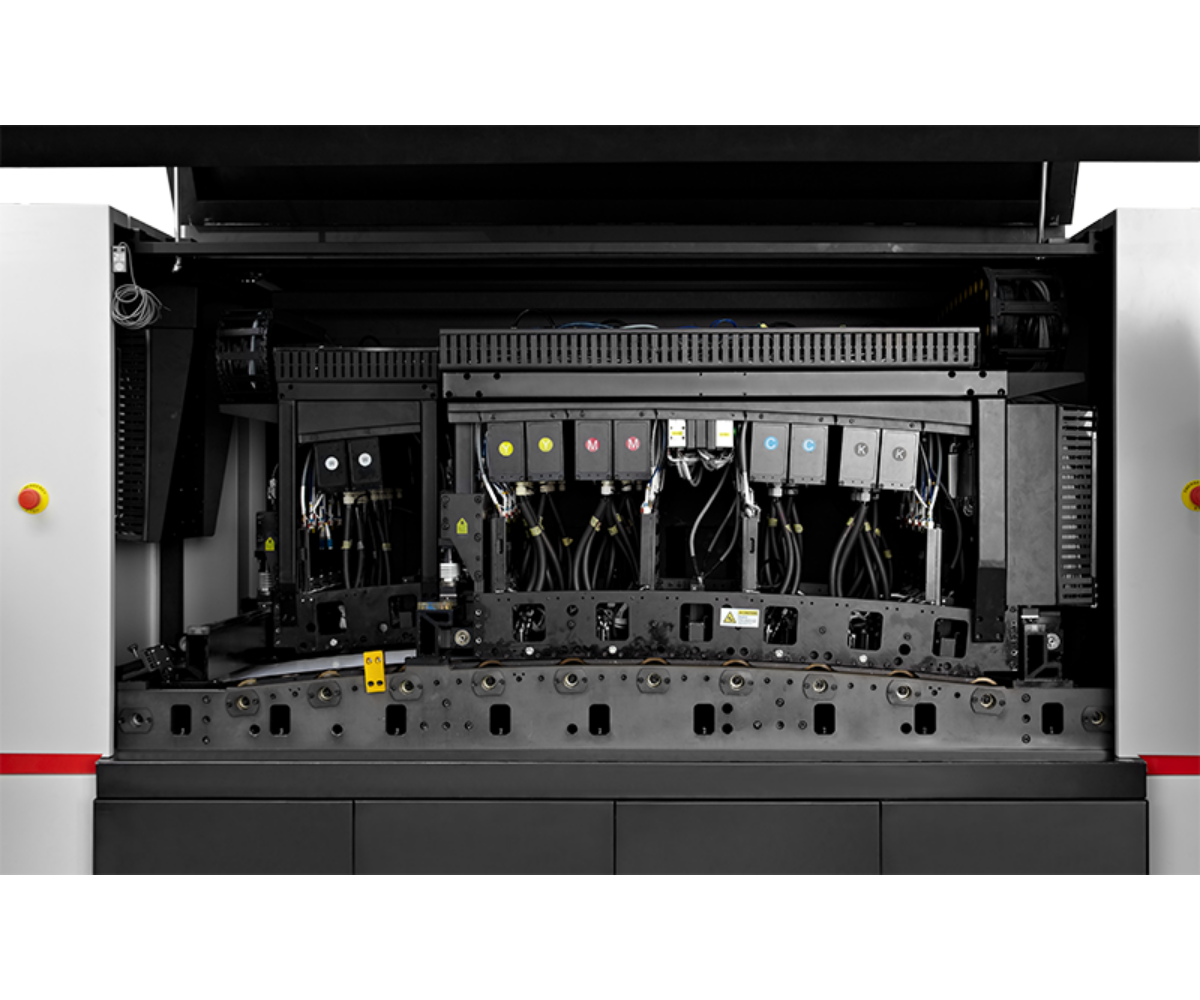

The LabStar 330 is ideal for users looking for a ‘workhorse’ with unrivalled return on investment. The inkjet press is manufactured in China and priced around 20% lower than comparable competitive presses. LabStar 330 uses the new generation of Kyocera printhead technology. Its print speed is up to 50m/min (164ft/min), from 220mm width, 600 DPI, four colors, to the top of the range 330mm width, 1200 dpi, five colors.

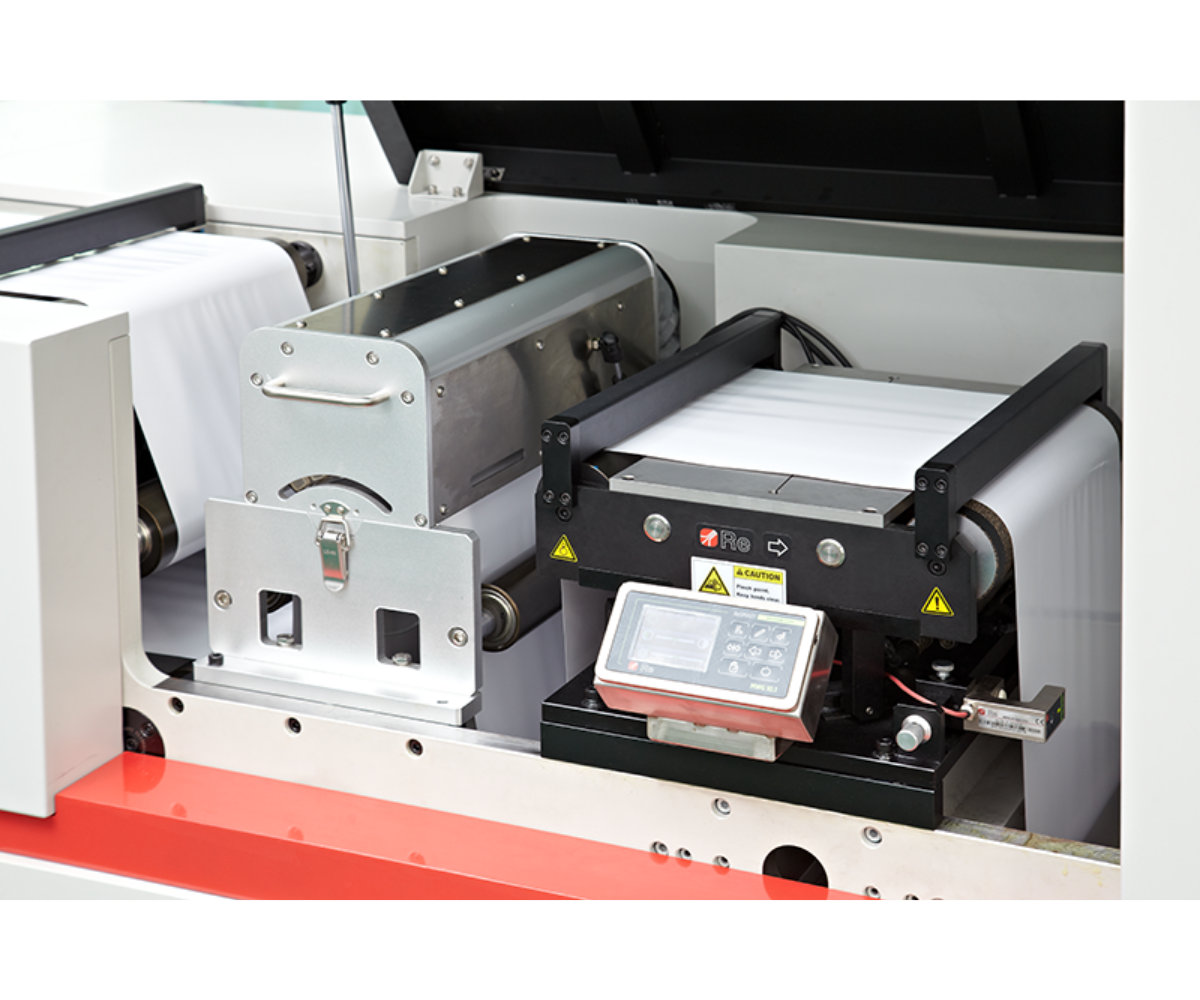

The basic machine is fully equipped with a corona treater and a web cleaner. A wide variety of substrates can be processed. This machine is designed with upgradable-on-site flexibility and capabilities. Customers do not need to add or update any equipment to achieve seamless upgrade and continuous upgrade, which ensures our customers use the latest and most advanced technology and services with the lowest cost.

HanGlobal, owned by Hanglory Group, specializes in the manufacturing digital label and book printers. The LabStar 330 is the result of capitalising on the many years of knowledge and experience of the HanGlory Group.

Model	LabStar330
Max. print resolution	6001200dpi,12001200dpi
Max. print width	320 mm
Ink type	UV Ink
Number of colors	CMYK; optional: W
Type	PET/PVC/PP/PE/BOPP film, coated & uncoated paper, and some special materials e.g. aluminum foil, etc.
Material width	75-350 mm
Roll diameter	800 mm
Unwinder/Rewinder core	3"(air shaft)
Thickness	0.02-0.5 mm
Feeding	roll to roll
Roll-changing method	automatic lifting by dual-spindle
Additional functions	Web guide, Tension control, Corona treatment, Web cleaner, Electrostatic removal, Modular curing units, Web break sensor, Automatic diameter detection, Automatic thickness detection, Automatic ink consumption detection, Fully servo control system
Dimensions	6290 mm1650 mm2107 mm
Net weight	3500 Kg
Gross weight	4000 Kg
Power requirements	40kW/AC380V
Air requirements	industrial air source 0.6-0.8Mpa, compressed
Environment	A separate, clean and low dust room with low radiation and good ventilation Temperature: 18-25℃ Humidity: 40%-65%（RH）
Input format	TIFF, PDF etc
UV curing	LED+UV curing system (Modular curing design)
Data transmission	High-speed PCIE transmission
