CTP Plate Processor

p class=MsoNormal>

Working with some world famous brands and market all over the world, Shangzun has created a reputation of high-quality CTP Plate Processors. . With the vision of "Quality First", Shangzun Machinery adheres sophisticated technology and good after-sales service, we offer a smart developer automatic replenishment system

The traditional developer replenishment method is to determine the supplemental amount based on the CTP plate area, and increase the oxidation supplement, in order to ensure the developing quality. The supplemental amount will be always greater than the actual consumption.

The smart developer automatic replenishment system adds according to the conductivity of the developer (pH temperature compensation, dissolved saturation. etc.). With the variation of these values, use the advanced data approximation method, create the optimal curve automatically and follow the curve to adjust some parameters of the development process timely, in order to make the developer to achieve the maximal effect. According to the experimental data of last three years, the developer saving effect can reach 20% -33%, very conducive to the environmental protection.

Secondly, our solutions come with automatic water circulation processing system. After filtration, the water of the flush plate can be utilized again. The user can adjust the edition amount according to the actual needs, and the system will discharge the high concentration wastewater automatically, while add new water rinse at the same time. The amount of water of this system is only 1/10 of usual.

Features:

1. Computer-controlled process, suitable for 0.15-0.4 mm all kinds of CTP plate.

2. Solution of the liquid temperature PID control, accuracy up to 10.5°C.

3. Scientific solution of the circulatory system to ensure uniform temperature.

4. Developing speed, brush rotate speed is all digitally processed; stepless gear is also available.

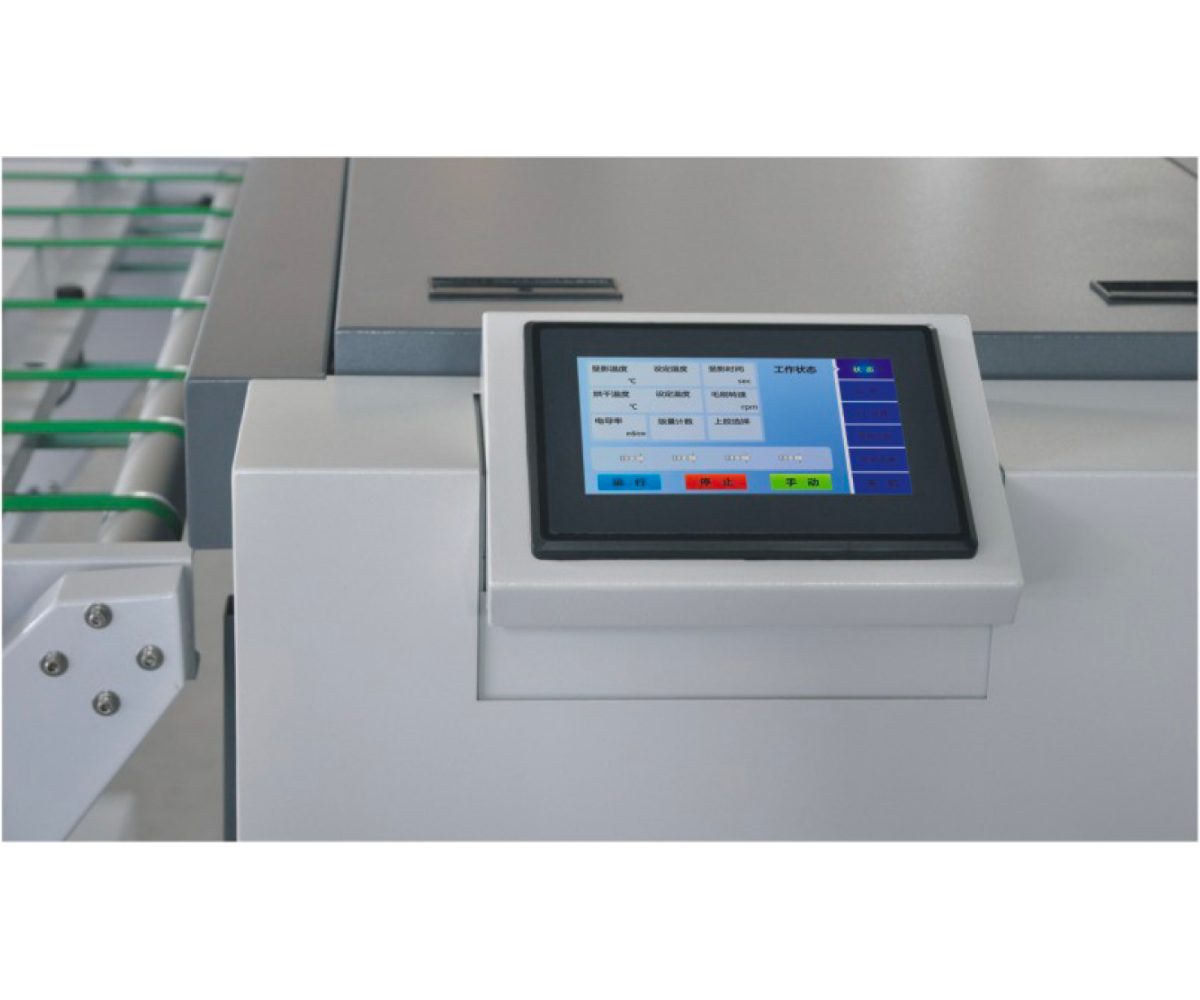

5. Temperature setting and actual temperature clearly displayed, alarming and error-displaying also available.

6. Accurate developing liquid supply system, liquid guaranteed stable.

7. Special water-saving design, water running only when plate is moving, no more whole-process water consuming,

8. Automatic rubber roller smoothing, avoiding rubber roller drying out after long-time standing by.

9. Automatic rubber roller cleaning, avoiding rubber roller harden after long-time break.

10. Automatic alarm to remind the replacement filter system to ensure the quality of reappearance.

11. The transmission parts are with super wear-resistant materials ensuring continuous use for three years without replacing any parts.
