DuoBlade WX I

VALLOY Inc. is Korean Venture company established in July, 2004. The company has founded by international marketing professionals and digital imaging professionals who have tens of years of experience in development and marketing for digital software, imaging devices, printing and finishing devices, inks an substrates and next dimensional displays in signage printing, textile printing, interior decoration and label & packaging market..

know more ➞ click here

Description
Specification

The knife label cutting machine that can be an alternative to laser cutting machine.

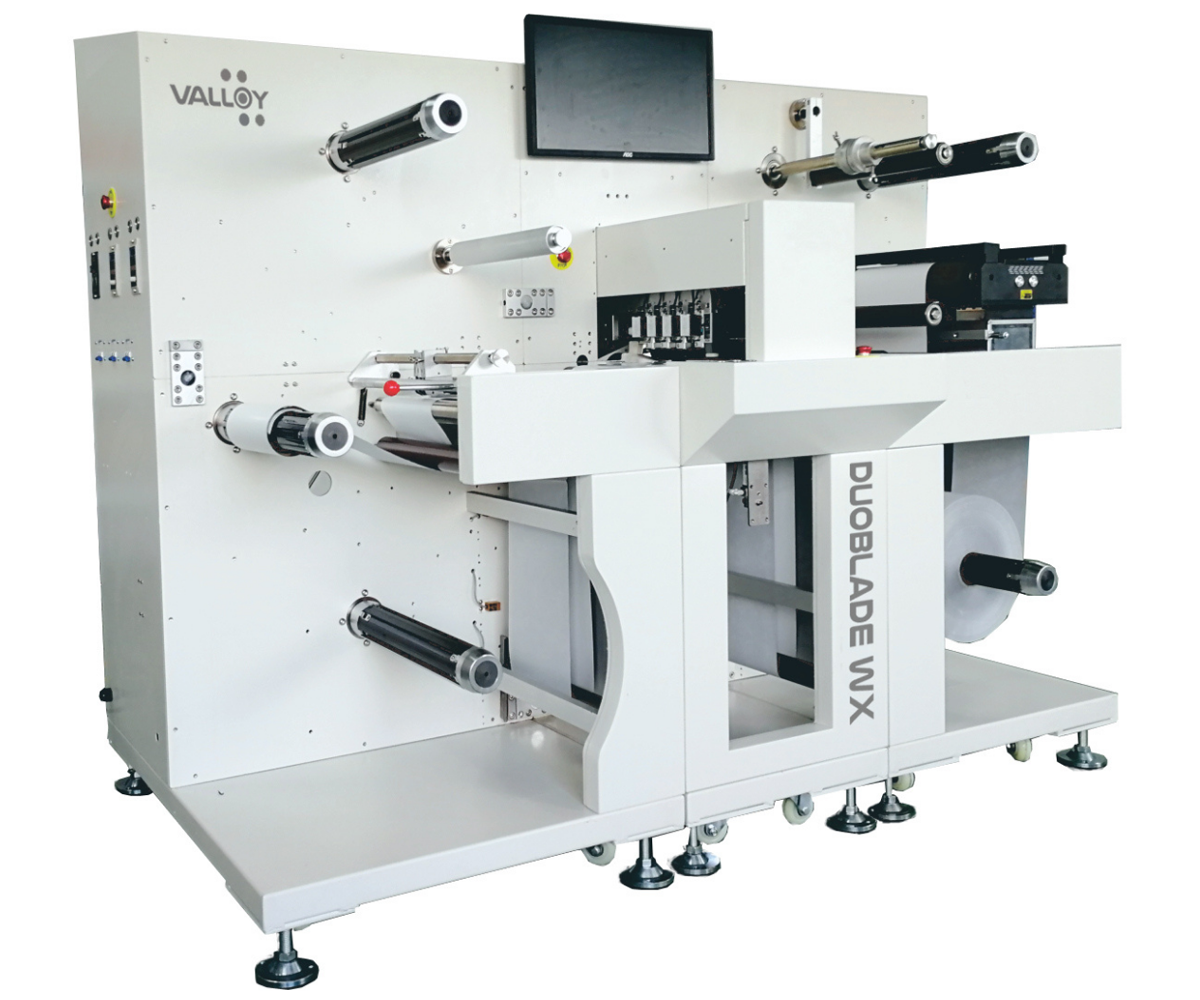

DUOBLADE WXI is all-in-one digital label finisher equipped with cutting, laminating, slitting, sheeting, matrix removal. The maximum cutting speed 9M /min (10cm x 10cm square) and automatic job changing by serial number. Most of operations are done automatically like cutting heads selection, which cutting head to use, etc. You can see the estimated time to finish each cutting job in cutting software. It has CCD camera system for fine cutting accuracy. DUOBLADE WXI is the most ideal digital label finisher.

Max. Media diameter	450mm
Cutting label size	Max. 330mm x 600mm

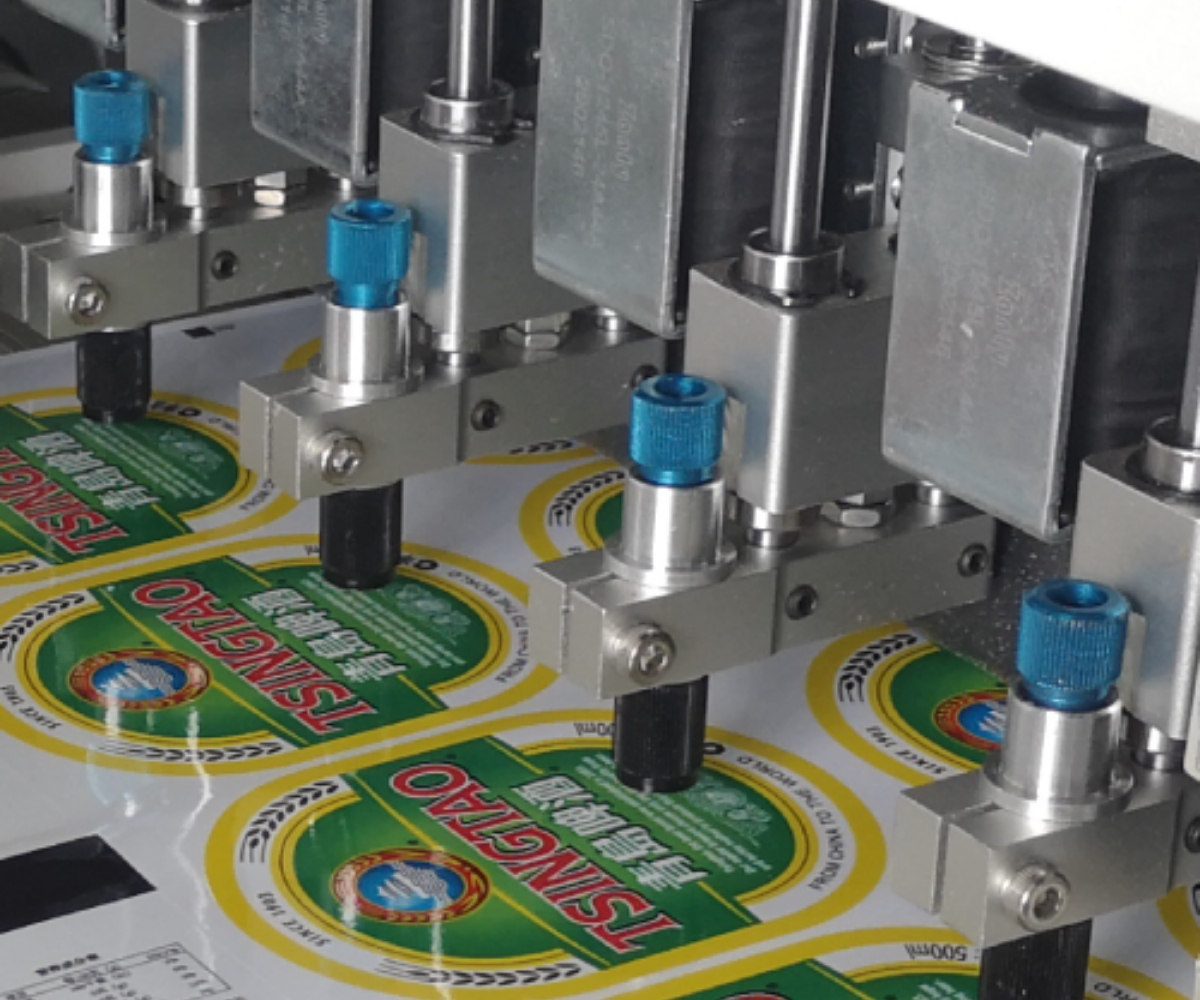

No. of cutting heads	4
Cutting Speed	9m/min
Cutting accuracy	0.05mm

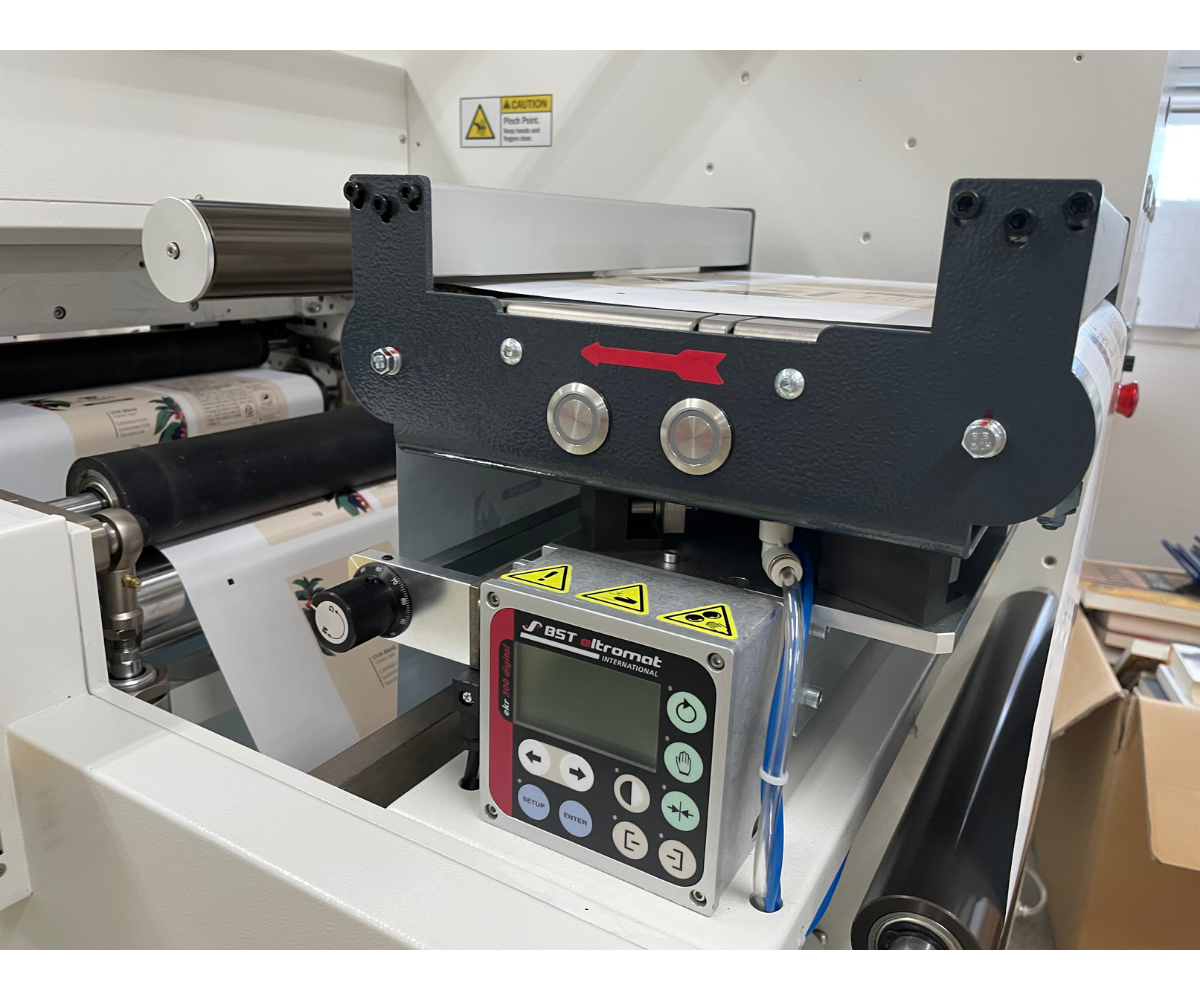

Web guide	BST (made in Germany)

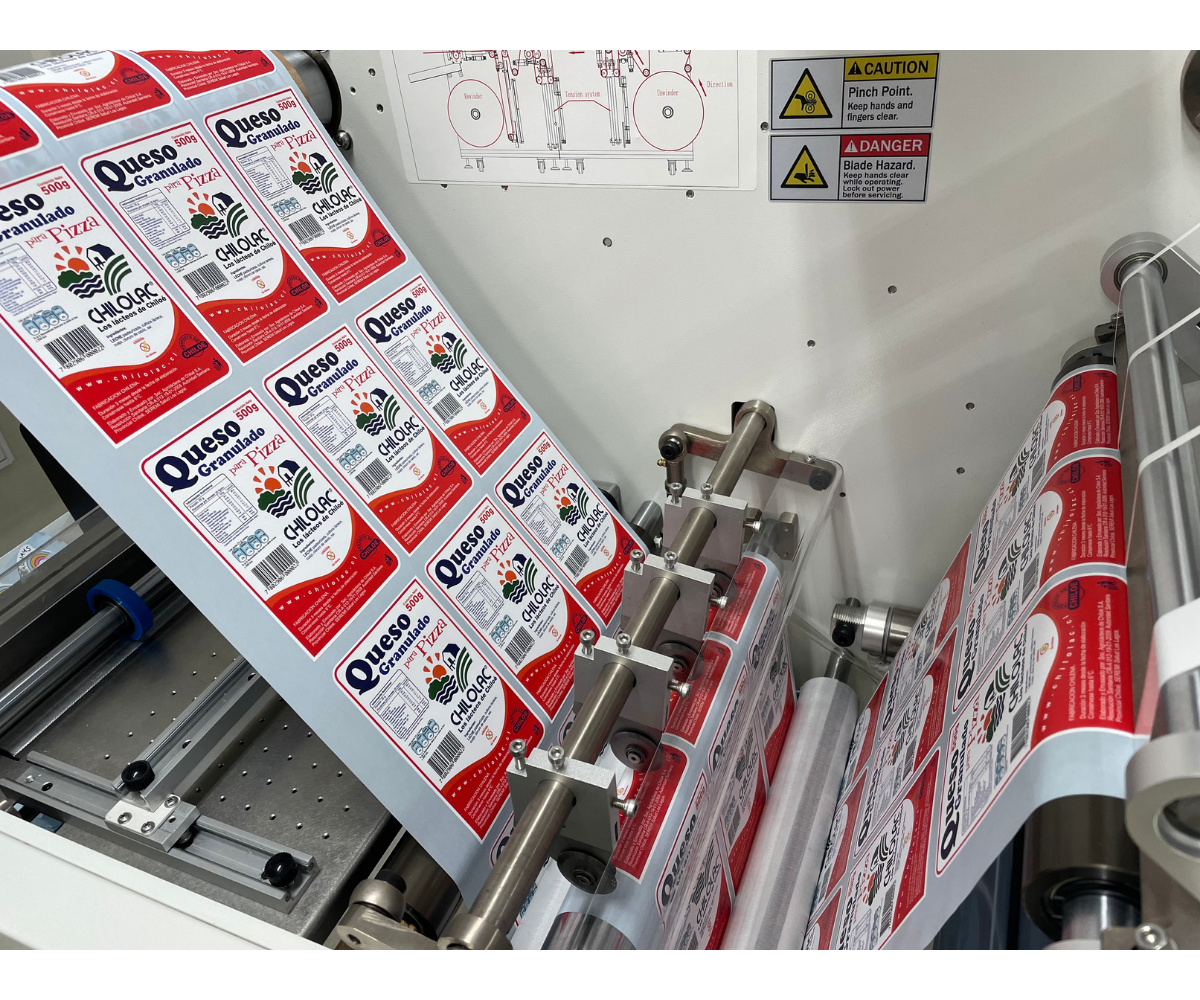

Slitter	4 (Max. 15), Ring blade type

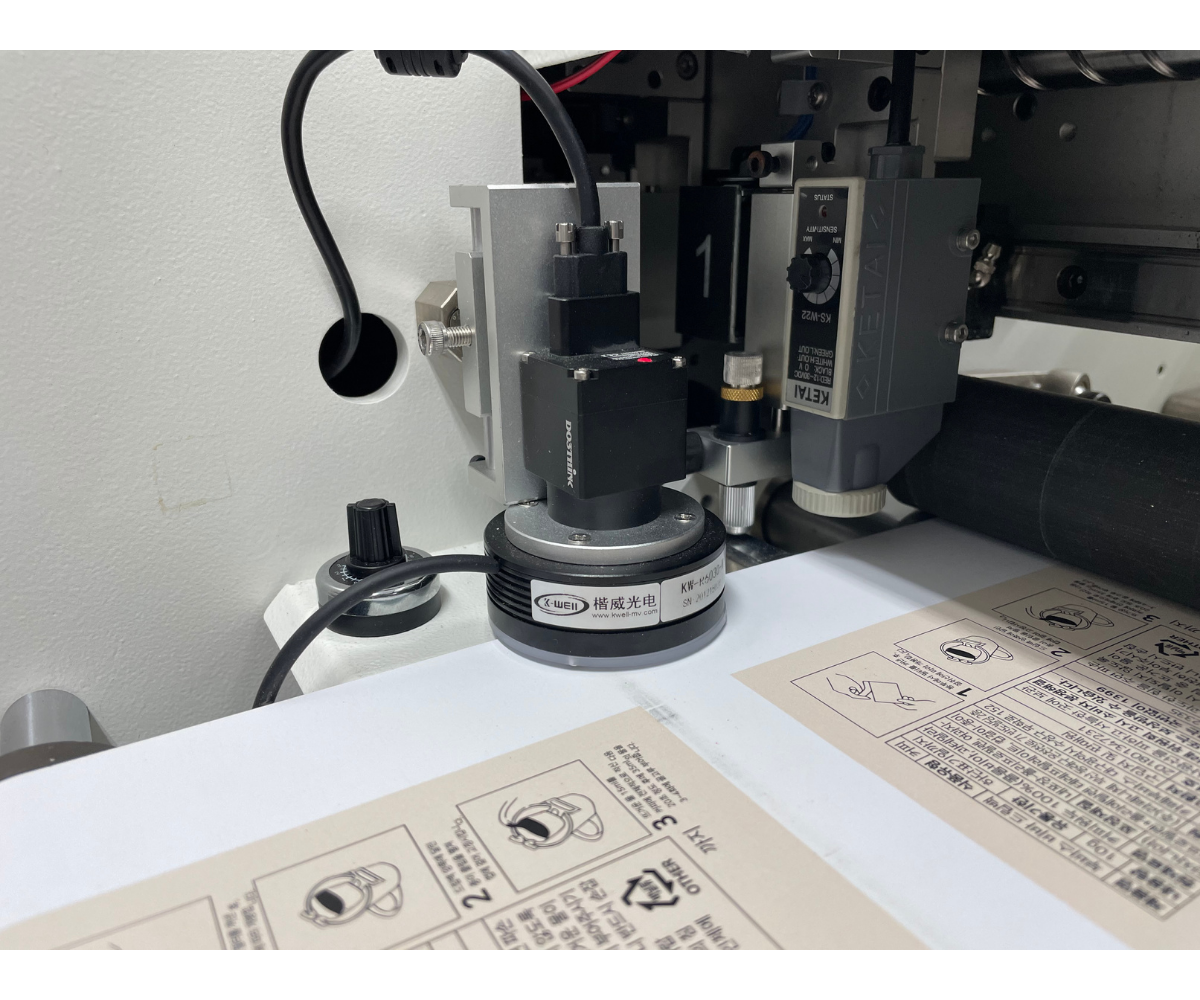

Code scanner	CCD Camera
Dimensions (WxLxH)	119.5cm x 200cm x 157.5cm
Weight	1200kgs
Power	100-240V AC, 2000W
Option	Built-in sheeter, Lamination backliner rewinder, 2nd(Up) rewinder
